Pulley-carabiner that facilitates installation on anchors and devices

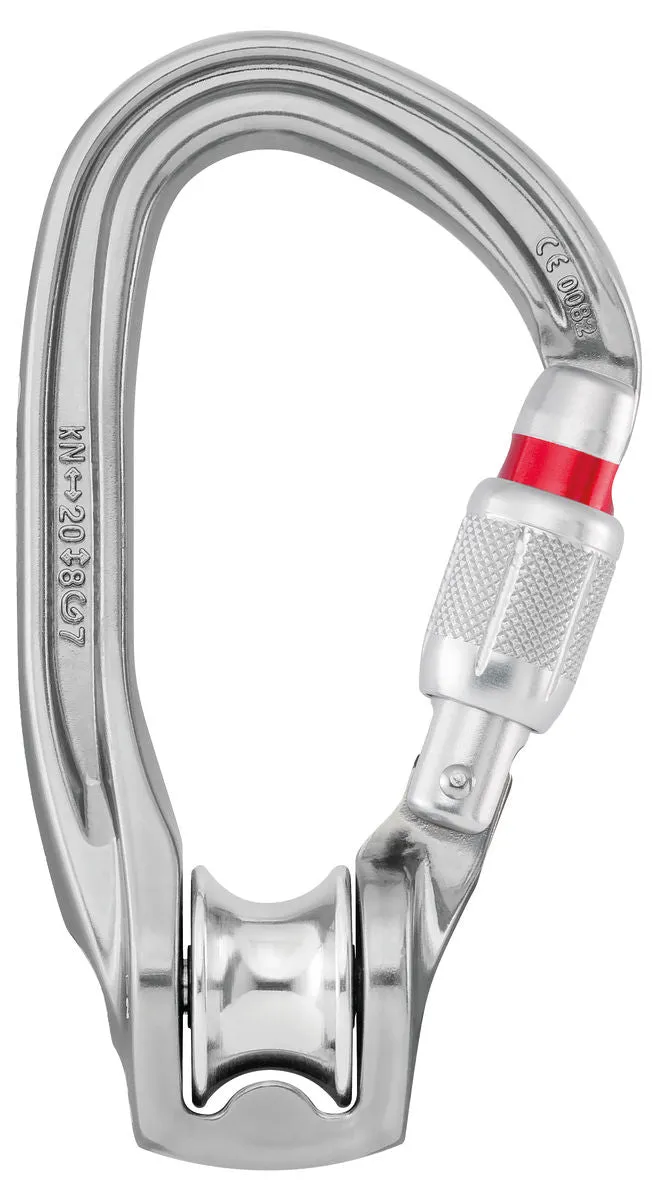

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Detailed description
- Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency
- gate opening on the non-pulley side, to facilitate installation on devices
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
- H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
- Two locking systems available:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Specifications
- Material(s): aluminum
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
SKUs
| SKUs | P75 TL | P75 SL |
|---|---|---|
| Locking system | TRIACT-LOCK | SCREW-LOCK |
| Weight | 110 g | 105 g |
| Certification(s) | CE EN 362, EN 12278, UKCA, EAC | CE EN 362, EN 12278, UKCA, EAC |
| Gate opening | 20 mm | 21 mm |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
